Why Nitrided Worm Shaft can improve valve gearbox service life

Overview

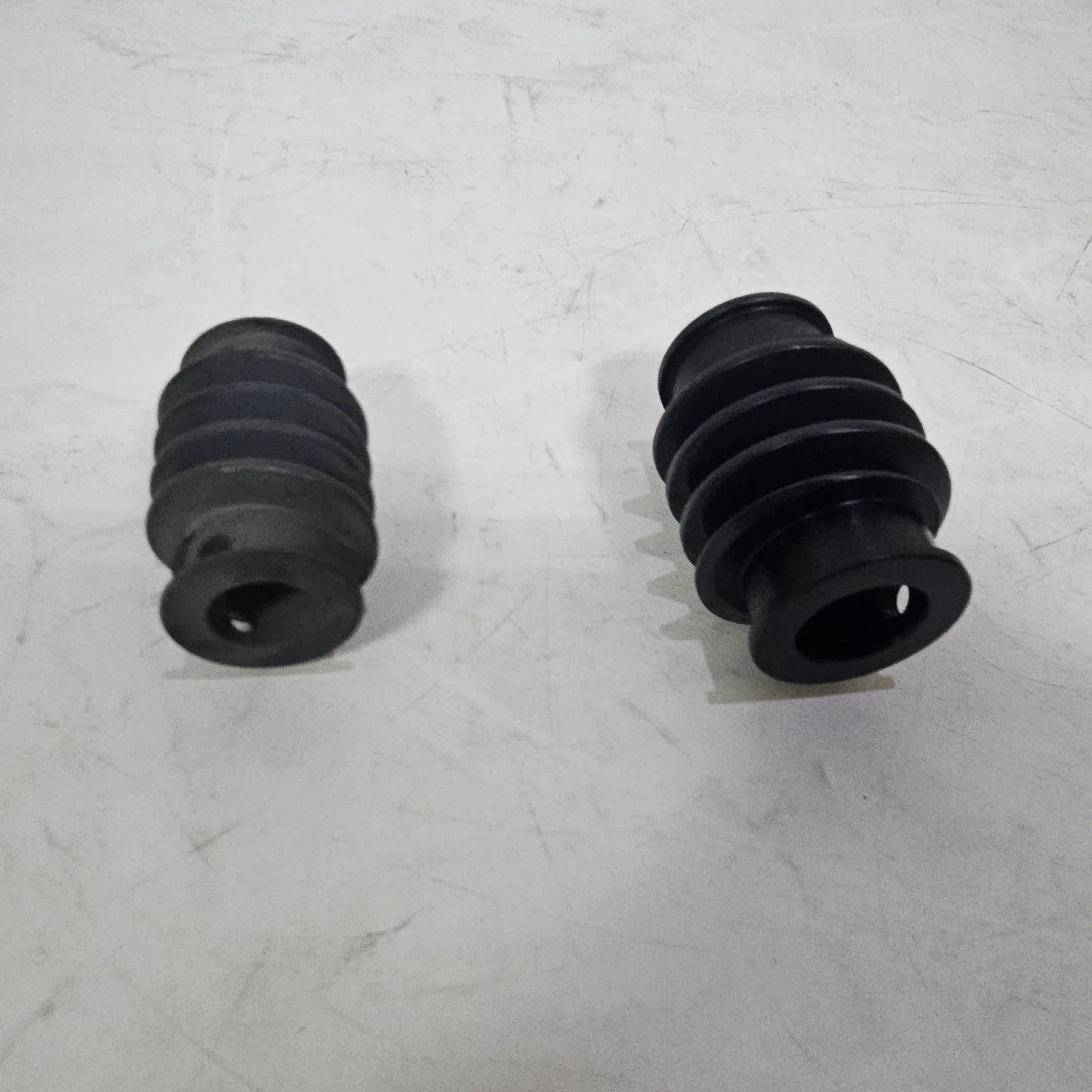

A nitrided worm shaft is a precision-engineered component that is frequently employed in high-performance machinery, including worm gear transmissions, reducers, and valve actuators. The worm shaft's durability, fatigue strength, and service life are substantially enhanced while maintaining dimensional stability as a result of the formation of a firm, wear-resistant layer on its surface through nitriding.

Primary Characteristics

• Surface Hardness: Hardness achieved: HRC 58–72 (HV700–1200). Offers exceptional resistance to erosion and minimizes surface deformation when subjected to substantial loads.
• Exceptional Wear Resistance: Recommended for sliding friction applications between the worm and worm wheel. Prevents galling or seizure and reduces the friction coefficient.
• Increased Fatigue Strength: Long-term reliability is made possible by the resistance of micro-cracking and contact fatigue to surface compressive stress.
• Minimal Thermal Deformation: The nitriding temperature is maintained at 500–580°C, ensuring that the machining precision is maintained with minimal distortion.
• Corrosion Resistance: The nitrided layer provides protection against mild chemical corrosion, oxygen, and moisture.
• Extended Service Life: Enhances transmission stability and reduces the frequency of maintenance.

Typical Materials

• 38CrMoAlA
• 42CrMo
• SCM440
• 40Cr

Nitriding Methods

• Gas Nitriding – Cost-effective, stable performance and widely used.
• Plasma (Ion) Nitriding – Uniform layer, minimal distortion, suitable for high-end applications.

Applications

• Worm gear reducers
• Electric and pneumatic valve actuators
• Packaging machinery
• Chemical and industrial equipment
• Lifting and transmission devices

Advantages over Conventional Quenched Worm Shafts

This is the reason Jimai Worm Gear has garnered the trust of a vast clientele: we never employ aggressive sales tactics. Rather, we are of the opinion that our unwavering dedication to product excellence will be the deciding factor in consumers' decisions.
