Right Angle Power: Efficient Torque Transmission
with Bevel Gearboxes
Bevel gearboxes deliver reliable power transmission at a 90-degree angle, optimizing space and enabling flexible machine design. Discover our range for demanding industrial applications.
Compared to others, the JIMAI bevel gearbox offers the following advantages:
1. Pinion gear material: JIMAI utilizes ASTM5140 for the pinion gear, which offers increased hardness and enhanced wear resistance.
2. Pinion gear treatment: The pinion gear of the bevel gearbox undergoes nitriding treatment, which enhances its hardness and extends its service life.
3. Own process: JIMAI independently processes the pinion gear, bevel gear, and gear body, adhering rigidly to quality standards.
4. Nut dimension customization: JIMAI can provide customers with the requisite nut dimensions and has the capability to manufacture nuts independently.
Use these quick selection paths to narrow down models before reviewing full specifications.
Multi-turn valves requiring high reduction.
Match output torque to valve stem load.
Handwheel, electric actuator, or extension.
Stem nut and flange compatibility.
Answer a few questions about your valve and application — we'll recommend matching Bevel Gearbox models and highlight them in the list below.
Nodular cast iron body
ANSI 60-45-12 standard
Simplifies operation
Malleable, resilient, and durable than conventional grey cast iron

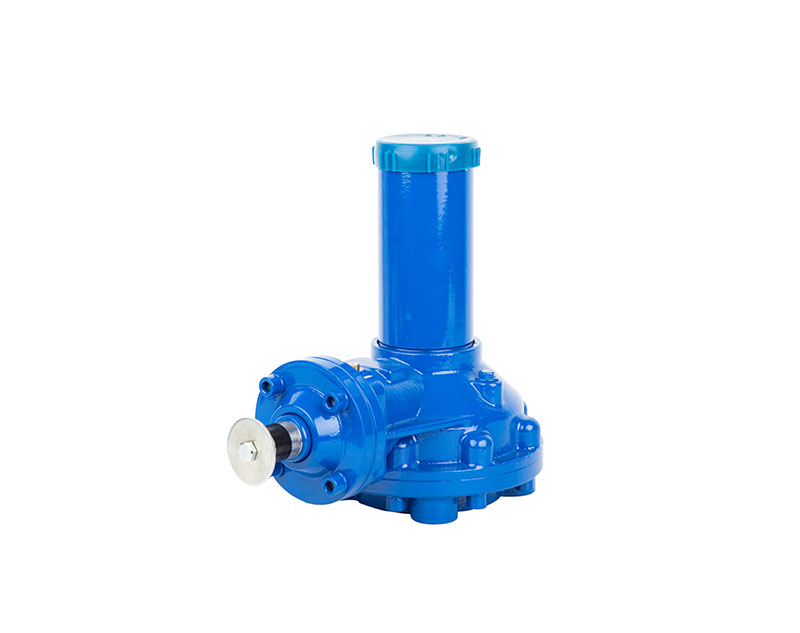

Multi turn bevel gearbox
Nodular cast iron body
Superior resilience, plasticity, and strength
High level of fatigue strength
High level of wear and corrosion resistance
Bevel Gearbox Frequently Asked Questions
We have compiled a list of frequently asked questions to help you better understand bevel gearboxes.
Find answers about right-angle power transmission, shaft configurations, lubrication, and more.
If you can't find the information you need, our team of experts is ready to help.
Browse related actuator and gearbox categories — image and overview at a glance.
View all product categories →Inspection and testing are performed according to the product type and applicable production procedure. Request the inspection scope for the selected model.
Torque, pressure, temperature, cycle-life, and protection ratings should be taken from the applicable model datasheet or test report, not from a category-wide claim.
Mounting interfaces and standards such as ISO 5211, NAMUR, VDI/VDE 3845, or other requirements are confirmed for each selected product and configuration.
Body, shaft, gear, seal, coating, and fastener materials vary by series. Confirm the bill of materials and environmental suitability before ordering.
CE, ATEX, IECEx, SIL, IP, and other documentation applies only where stated for the exact model. Certificate scope and revision should be verified during selection.
Warranty period, exclusions, spare-parts support, and technical documentation are confirmed in the quotation, order documents, or product-specific warranty terms.
