JIMAI's products are the preferred choice for the metallurgy industry. It is activated by air pressure input and responds promptly upon receipt of the input. JIMAI's products are capable of achieving an exceptional level of performance when the device requires frequent opening and closing and a response in a matter of seconds. Additionally, JIMAI's products are capable of operating in high-temperature and harsh environments, ensuring reliable performance in demanding conditions.
Valve Solutions for Metallurgical Processing
Our durable valve solutions are engineered to withstand the harsh conditions of metallurgical processes, including high temperatures, abrasive materials, and corrosive environments.

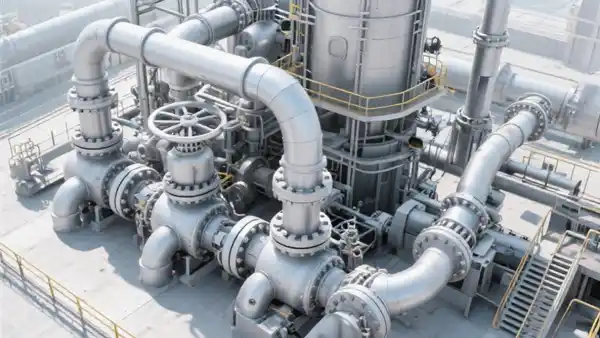

In the metallurgical industry, ball valves, butterfly valves, gate valves, and globe valves are extensively employed for various applications including fluid control, gas handling, and material processing.

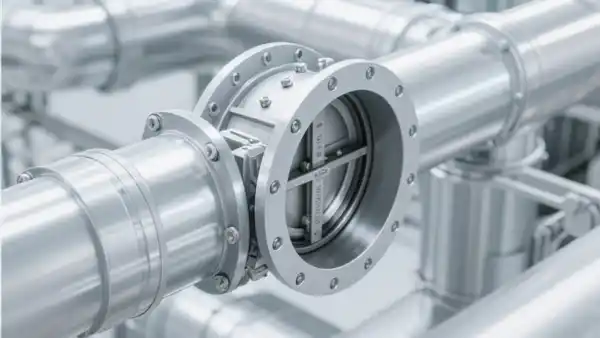

Butterfly valves are employed in metallurgical flue gas treatment systems (such as desulfurization and particulate removal pipelines) or cooling water systems. They feature wear-resistant linings (rubber, PTFE) or strong metal seals (Stellite alloys) for high-temperature and abrasive conditions.

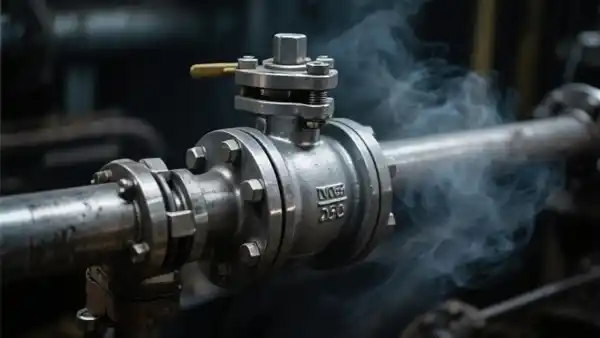

Ball valves are used for conveying high-pressure gaseous or liquid media (oxygen, nitrogen, hydraulic systems) and high-temperature molten metals (copper and aluminum smelting). They offer excellent sealing capabilities, minimal flow resistance, high pressure tolerance, and swift operation.

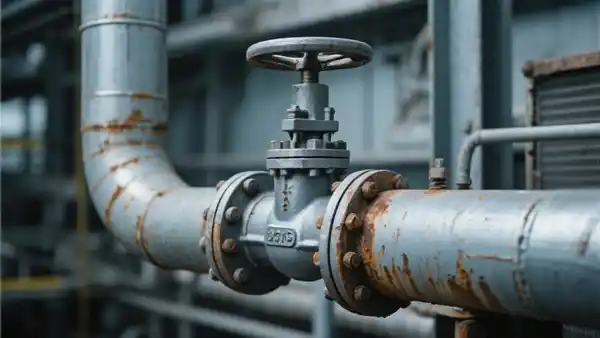

Gate valves feature full-bore operation, minimal flow resistance, high pressure tolerance, and are suitable for on/off control. They are used in blast furnace cooling water systems, extensive conduits (hot rolling mill cooling water, steelmaking continuous casting processes), and applications requiring complete fluid isolation.
| Technical Specifications | |||||
| Material: | Ductile iron, cast iron, stainless steel | Temperature Range: | -20°C to 800°C | Pressure Rating: | PN10-PN420, ANSI Class 150-2500 |
| Sealing Type: | -20°C to 200°C | Actuation: | Manual, electric, pneumatic, hydraulic | Standards Compliance: | API, ISO, DIN, GB |
Torque range: 260N.m to 150000Nm
Unit featuring high efficiency reduction
90° rotation (±5°)
Self-locking device that is stable
Weatherproof level: IP67 (optional: IP68)
Torque range: 260N.m to 150000Nm
Unit featuring high efficiency reduction
90° rotation (±5°)
Self-locking device that is stable
Weatherproof level: IP67 (optional: IP68)
X-RING configuration
Copper sliding mechanism
Enhance the composition of susceptible components
Front configuration of air connection and overhead arrangement of lifting lug
