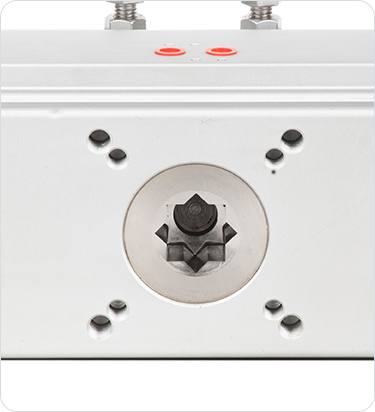

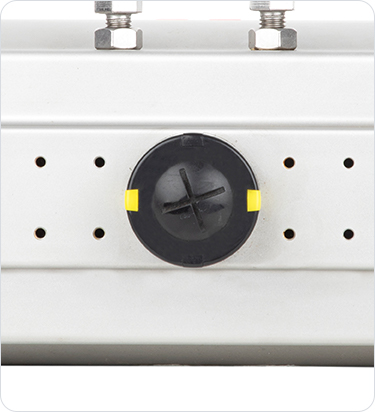

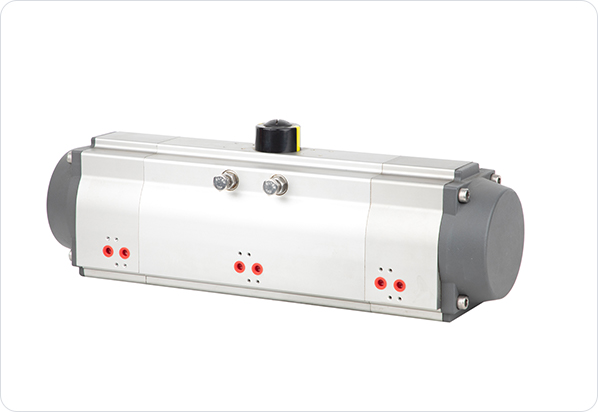

JIMAI JAT series pneumatic actuator is the preferred choice for the chemical industry. It is activated by air pressure input and responds promptly upon receipt of the input.
Our JAT series pneumatic actuator is capable of achieving an exceptional level of performance when the device requires frequent opening and closing and a response in a matter of seconds.
Additionally, our pneumatic actuator is capable of operating in explosion-proof environments, regardless of the level of peril present.
Valve Solutions forChemical Manufacturing
Our specialized valve gearboxes and automation solutions are designed to meet the rigorousdemands of chemical manufacturing processes, ensuring safety, reliability, and efficiency.

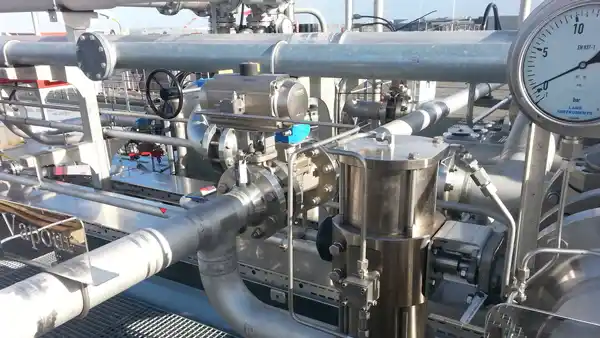

JlMAl gearboxes have passed lP67 and lP68 certificates, which can guarantee stable workingperformance within chemical environments. These certifications ensure protection against dustwater immersion, and harsh chemicals.

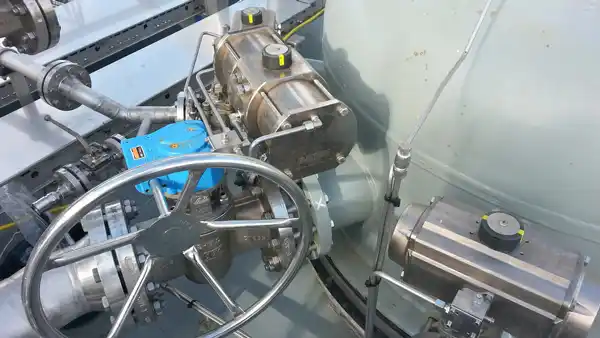

Our bevel gearboxes and valve gearboxes are specifically designed for the chemical industry.They can be actuated either manually or with an electric actuator, providing flexibility andreliability in demanding environments.
Gate valves are the most commonly used in the chemical industry, characterized by a gate that isactuated by the valve stem and moves vertically along the sealing surface of the valve seat,thereby enabling connection or disconnection of the fluid passage.

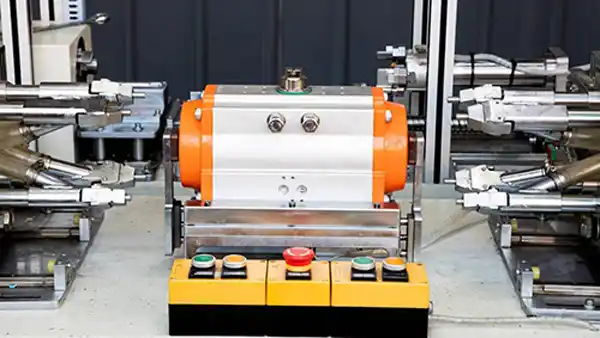

Valves are essential components in pressure pipelines, serving to open and close, regulate flow,and ensure safe operation. Commonly utilized valves include gate valves, globe valves, checkvalves, ball valves, butterfly valves, traps, safety valves, and regulating valves.
| Technical Specifications | |||||
|---|---|---|---|---|---|
| Material: | Stainless steel, carbon steel, alloy steel | Pressure Rating: | ANSI Class 150LB-2500LB / PN 1.6-42.0 | Temperature Range: | -40°C to 540°C |
| Actuation Options: | Manual, electric, pneumatic, hydraulic | Sealing Material: | PTFE, graphite, metal-to-metal | Connection Type: | Flanged, threaded, welded, socket weld |
Torque range: 260N.m to 150000Nm
Unit featuring high efficiency reduction
90° rotation (±5°)
Self-locking device that is stable
Weatherproof level: IP67 (optional: IP68)
Torque range: 260N.m to 150000Nm
Unit featuring high efficiency reduction
90° rotation (±5°)
Self-locking device that is stable
Weatherproof level: IP67 (optional: IP68)
Torque range: 260N.m to 150000Nm
Unit featuring high efficiency reduction
90° rotation (±5°)
Self-locking device that is stable
Weatherproof level: IP67 (optional: IP68)
Nodular cast iron body
ANSI 60-45-12 standard
Simplifies operation
Malleable, resilient, and durable than conventional grey cast iron
Multi turn bevel gearbox
Nodular cast iron body
Superior resilience, plasticity, and strength
High level of fatigue strength
High level of wear and corrosion resistance
