What Are the Applications of Pneumatic Butterfly Valves in Industrial Systems?

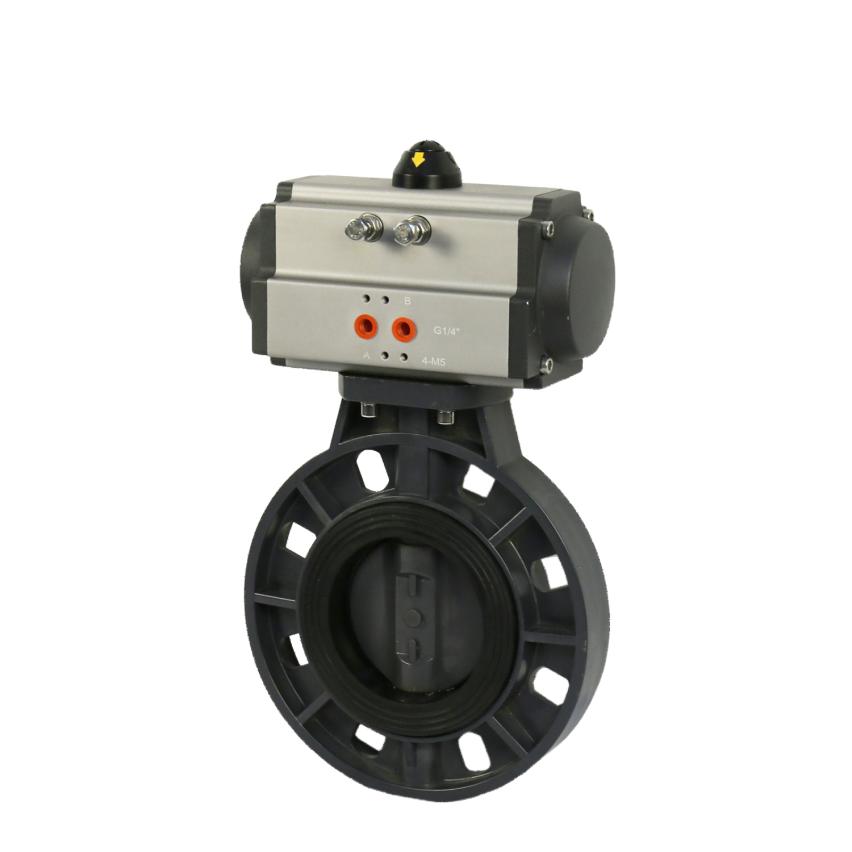

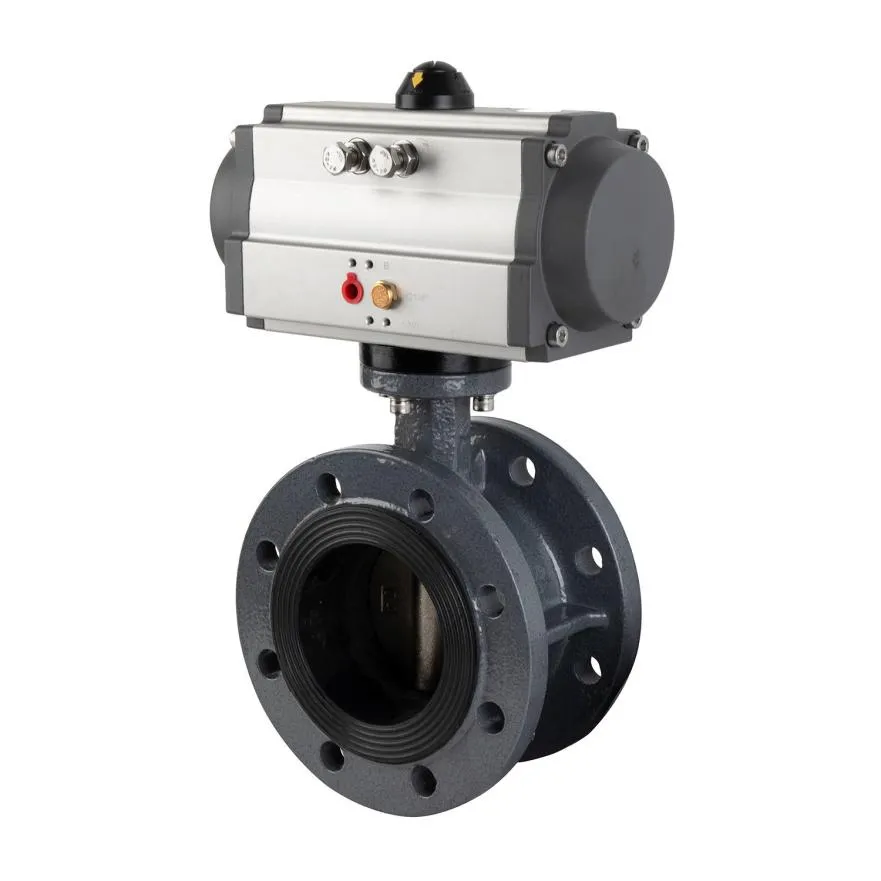

The efficient flow control, rapid operation, and reliability of pneumatic butterfly valves have made them a popular choice across industries. These valves use compressed air to actuate a 90°-rotating disc, enabling quick opening/closing of fluid passages. Their adaptability suits diverse applications, from chemical processing to water treatment.

1. Water and Wastewater Treatment

Pipeline Regulation: Ensures smooth water flow and prevents backflow.

Filtration Systems: Controls water intake/discharge during purification.

Sludge Handling: Optimizes slurry flow in digesters and thickeners.

2. Oil and Gas Pipelines

Emergency Isolation: Enables rapid shutdown during overpressure or leaks.

Refining Processes: Regulates crude oil, natural gas, and refined product distribution.

Offshore Platforms: Corrosion-resistant designs (e.g., stainless steel) withstand marine environments.

3. Pharmaceutical & Chemical Processing

Corrosive Media: PTFE-lined or EPDM-seated valves handle acids, alkalis, and solvents.

Batch Processing: Provides precision flow control for mixing/dispensing.

Sanitary Compliance: Meets FDA/USP standards for sterile fluid transfer.

4. HVAC & Building Services

Chilled Water Systems: Optimizes cooling water flow.

Steam Distribution: High-temperature variants manage district heating networks.

Energy Efficiency: Reduces consumption via PLC-integrated control.

5. Food & Beverage

Hygienic Design: Tri-clamp valves prevent contamination in dairy/brewing lines.

Liquid Filling: Ensures accuracy in bottling/packaging.

CIP Systems: Enables automated cleaning without disassembly.

Key Benefits of Pneumatic Actuation

Rapid Response: Emergency shut-off in seconds.

Safety Options: Spring-return models fail-safe during air loss.

Remote Control: Integrates with PLC/SCADA for automated process management.

Conclusion

Pneumatic butterfly valves are indispensable for automated, reliable, and fast flow control in industries handling liquids, gases, and slurries. Manufacturers like Jimai provide high-quality valves  that combine durability, low maintenance, and cost-effectiveness, making them a trusted choice for demanding industrial applications.
