how the automatic screw machines solve the end cover connection problem
The end cap, a core sealing and structural component in the precision manufacturing of pneumatic actuators, directly influences the product's long-term reliability, structural rigidity, and sealing performance because of its close connection.
A persistent issue in the assembly process, a loose end cap connection can result in minor issues such as oil leaks, dust intrusion, and increased noise, or even severe problems like damage to internal components and equipment malfunctions.
Traditional manual fastening or basic equipment are unable to fully resolve this issue due to their insufficient precision and inconsistent quality.
Nevertheless, the automatic screw machine, which was independently developed by JIMAI , is a critical piece of equipment for ensuring the quality of end cap connections. Its core advantages include precise control, intelligent monitoring, and stable output, which fundamentally address the precision bottleneck in end cap fastening.
There are two primary categories of causes for seal failure and unsecured connections:

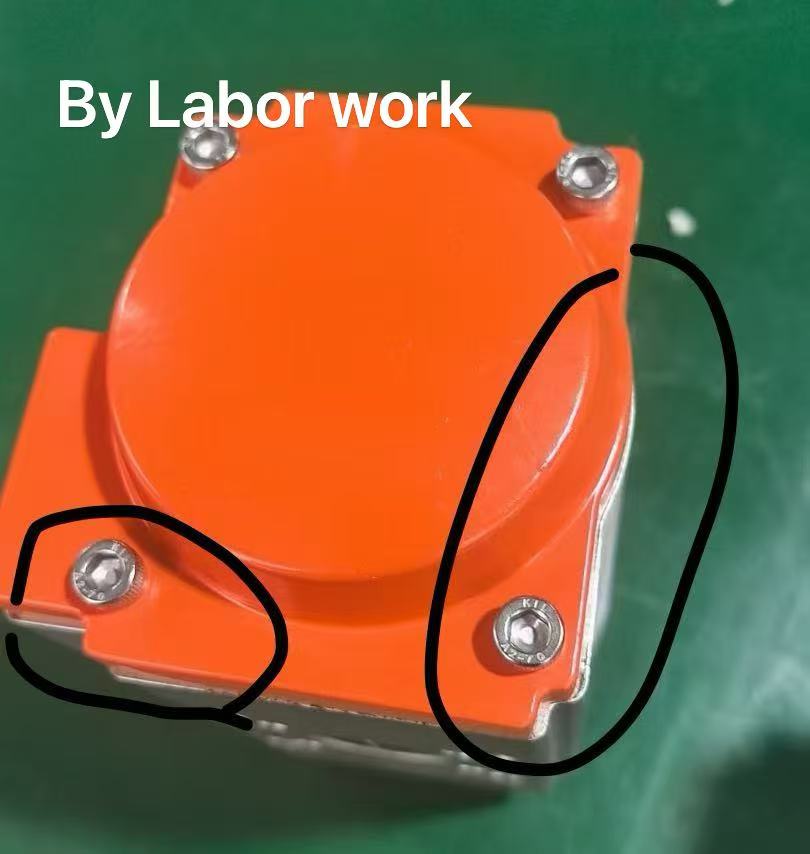

1. Unregulated Tightening Force: Preload that is either too loose or too firm. The input torque during manual tightening can vacillate due to variations in the friction coefficient of the fasteners and workpiece surfaces, even when using a torque wrench (fluctuations can reach ±30%), resulting in substantial differences in the actual preload.
Insufficient Preload: The end cap and the machine body are separated by unsecured fasteners, which can result in seal failure due to the proneness of the end cap to loosening in response to temperature changes and vibration.
Excessive Preload: The planar fit can be compromised by stripped fasteners, damaged threads, or localized deformation and distortion of the end cap.
Uneven Force on Multiple Screws: The end cap is twisted under stress, resulting in insufficient compression of local sealing gaskets and leakage spaces, as manual tightening is challenging to perform diagonally and step-by-step according to specifications.
2. Deviations in Positioning and Alignment: End Cap Offset, Hole Misalignment
End caps of pneumatic actuator typically have 4 fastening screws, necessitating an exceptionally high level of assembly alignment precision.
Misaligned screwdriver tools and angled screws can be readily caused by manual or basic equipment, which can result in misaligned screw fastening and hole wear.
The end cap may migrate or run during the fastening process, resulting in gaps at the mating surface, as it fails to achieve precision coaxiality with the machine body's stop.
II. Automatic Screw Fastening Machine: Precise Fastening, Solving End Cap Loosening at its Root Cause
The screw attachment machine that was self-developed is equipped with three core technologies: intelligent feedback, visual positioning, multi-axis collaboration, torque-angle monitoring, and precision servo control. It entirely resolves the issue of loose connections by achieving precise, standardized, and visualized operation throughout the entire process, thereby addressing the pain points of end cap attachment.
1. High Precision Torque Control: Prevents Over-Tightening and Over-Tightening by Maintaining a Consistent and Stable Pre-Tightening Force
The torque control accuracy of the servo motor and high-precision torque sensor is ±0.01 N·m, with a fluctuation range of ±5%. This is significantly better than the ±20%-30% of manual adjustment. Uniform compression of the sealing gasket is guaranteed by the fully consistent tightening force of each bolt.

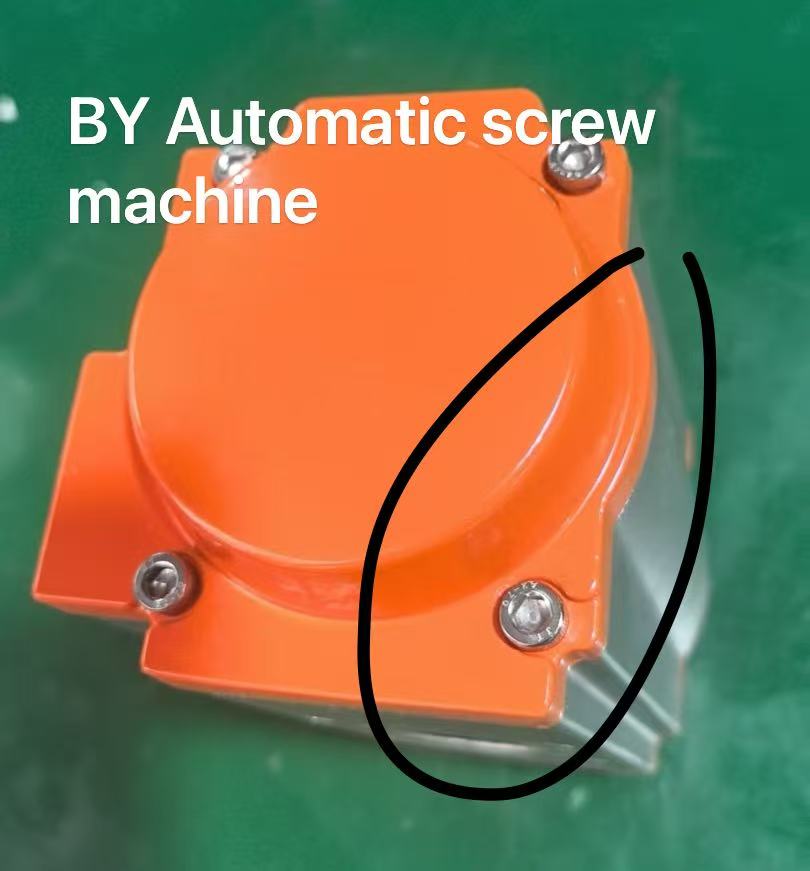

2. Accurate Positioning and Alignment: End covers are securely and snugly fastened, with no deviation in hole positions.

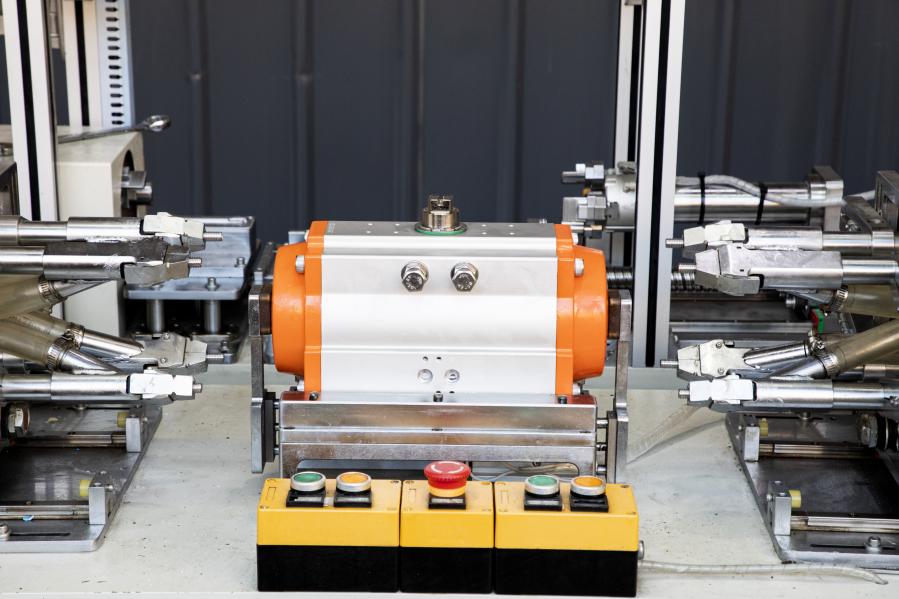

Precision Tooling + Multi-axis Collaboration: Screw fasteners that are multi-axis (4-axis, 6-axis, 8-axis) can simultaneously fasten all screws. In order to prevent displacement and movement, the end covers are securely fastened to the machine body using specialized mounting fixtures prior to being fastened. The lead screw and guide rails are ground to a high degree of precision, which guarantees vertical fastening and ensures seamless and deviation-free movement.
3. Intelligent Monitoring from Start to Finish: Quality Traceability and Zero Defects Outflow
Real-time Status Monitoring: The system gathers parameters such as torque, angle, depth, and speed in real time during the fastening process. It automatically identifies issues such as missed fastening, loose fastening, stripped threads, and abnormal hole positions, and immediately stops the machine with an alarm to prevent defective products from flowing into the next process.
Automatic Data Storage: The fastening data for each screw, including the time, torque, angle, and product number, is automatically recorded, thereby enabling the analysis of quality and the optimization of processes. This also supports traceability and retrieval.
Loose end cap connections, which may appear to be a minor issue, are actually a critical concealed hazard that impacts the quality of the product. Our domestically developed screw-locking machines, which are characterized by their standardized operations, intelligent monitoring, and precise control, have replaced the conventional manual, experience-based, and erratic fastening methods. Loose end caps and sealing failures are entirely eliminated by addressing the fundamental causes of pre-tightening force, positioning, and process monitoring problems.
Our automatic screw machines, which are domestically developed, are not only essential instruments for ensuring product reliability, sealing, and stability, but also enhance efficiency in the increasingly stringent precision manufacturing quality requirements of today. They assist companies in achieving high-quality, standardized, and intelligent production enhancements by providing a strong defense for end cap assembly quality in industries such as motors, cylinders, home appliances, and automobiles.
